TOPDON TC002(iOS Devices- Lightning Port)

SKU:
0.0 (0)
0 Sold
$229.00 $299.00
The TC002 thermal imaging camera for smartphones provides top-notch accuracy for temperature detection, insulation inspection, and circuit board inspection. With an ultra-high resolution of 256x192, the TC002 delivers clear and detailed thermal images. It offers a temperature detection range of ±3.6°F(2°C), with an accuracy of 0.1°C; and with its low power consumption of 0.35W, you can use it for extended periods of time without worrying about running out of battery. The high heat sensitivity of 40mk allows for precise temperature changes to be sensed.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites (0)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
1/1
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • TOPDON TC002(iOS Devices- Lightning Port)
  • Description
  • Shipping Information

ACCURACY & CLARITY

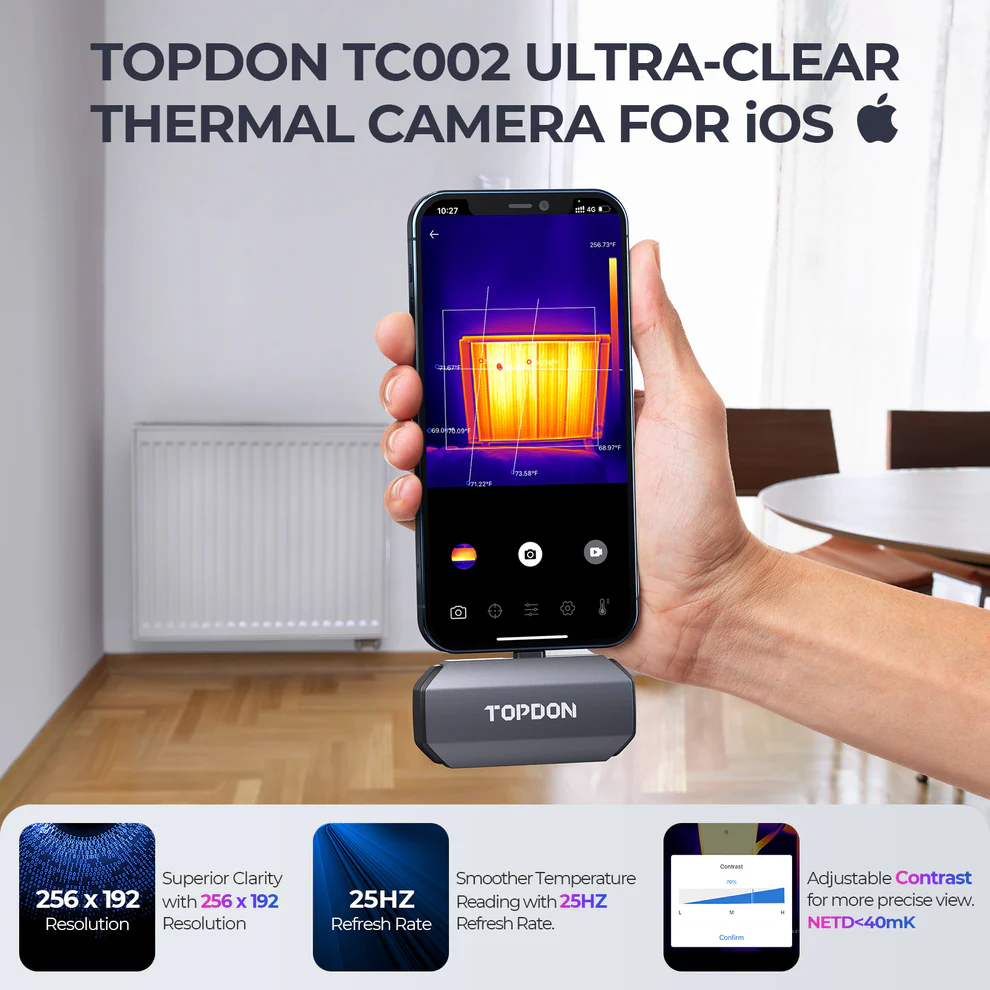

The TC002 boasts a high-resolution of 256 x 192 pixels, providing detailed and clear thermal images of your target. Its high accuracy and clarity make it perfect for objects where surface temperature is difficult to distinguish.

BUILT FOR MOBILITY

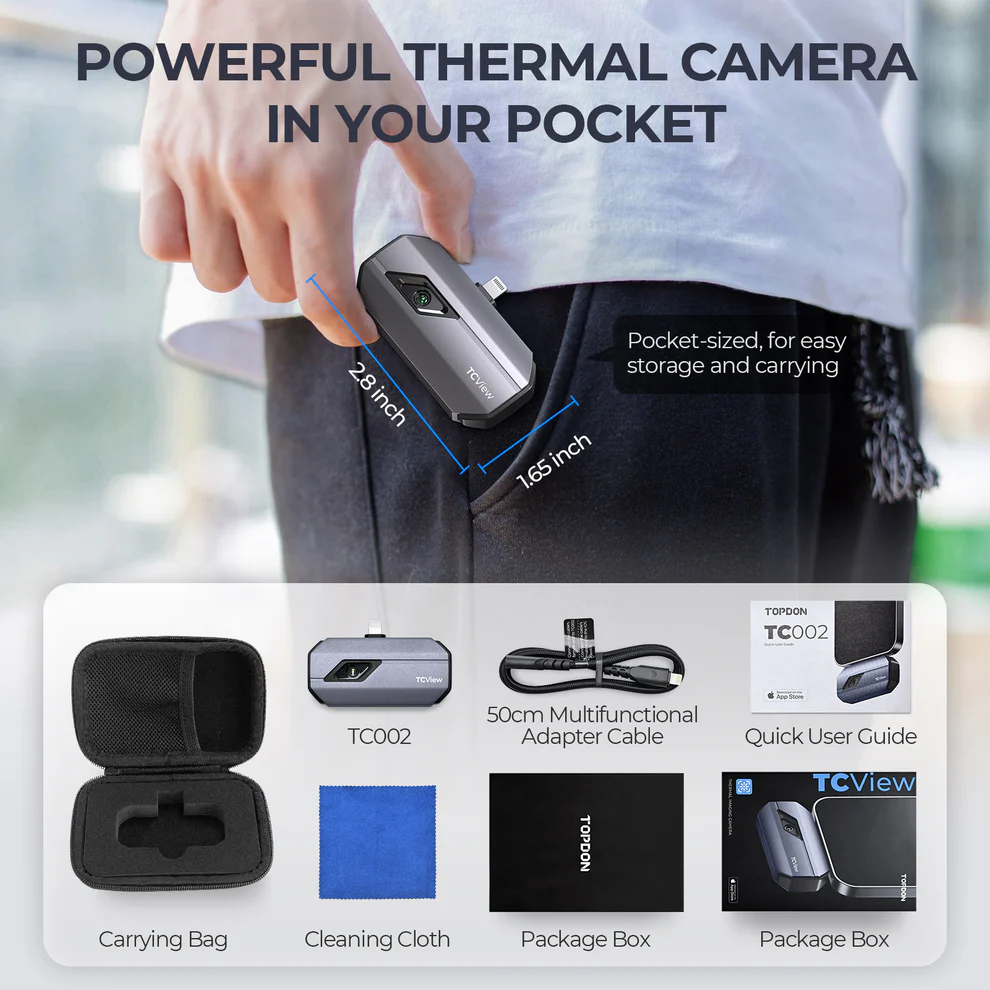

The TC002 is compact and lightweight, measuring 2.8 inches by 1.65 inches by 0.55 inches and weighing just 30 grams. Its portable design makes it easy to pair with iPhones and iPads, and the rugged aluminum case provides protection against drops, ensuring you can monitor temperature anywhere, anytime.

LOW CONSUMPTION = LONGER BATTERY LIFE

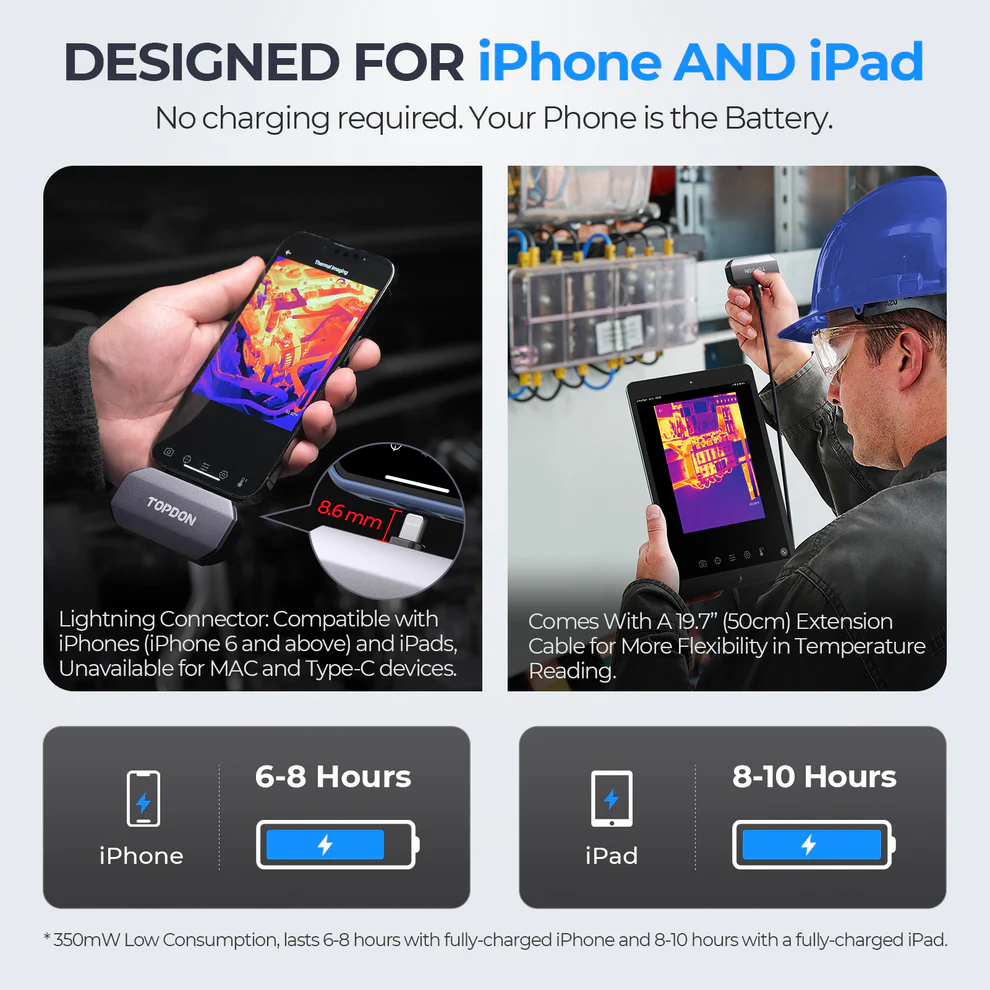

The TC002 connects to your iPhone or iPad and is powered by the device, eliminating the need for a separate power source. Its low power consumption of 0.35W ensures longer battery life, with 4-7 hours of usage on devices with a 3000-5000mAh battery.

TEMPERATURE RANGE & ACCURACY

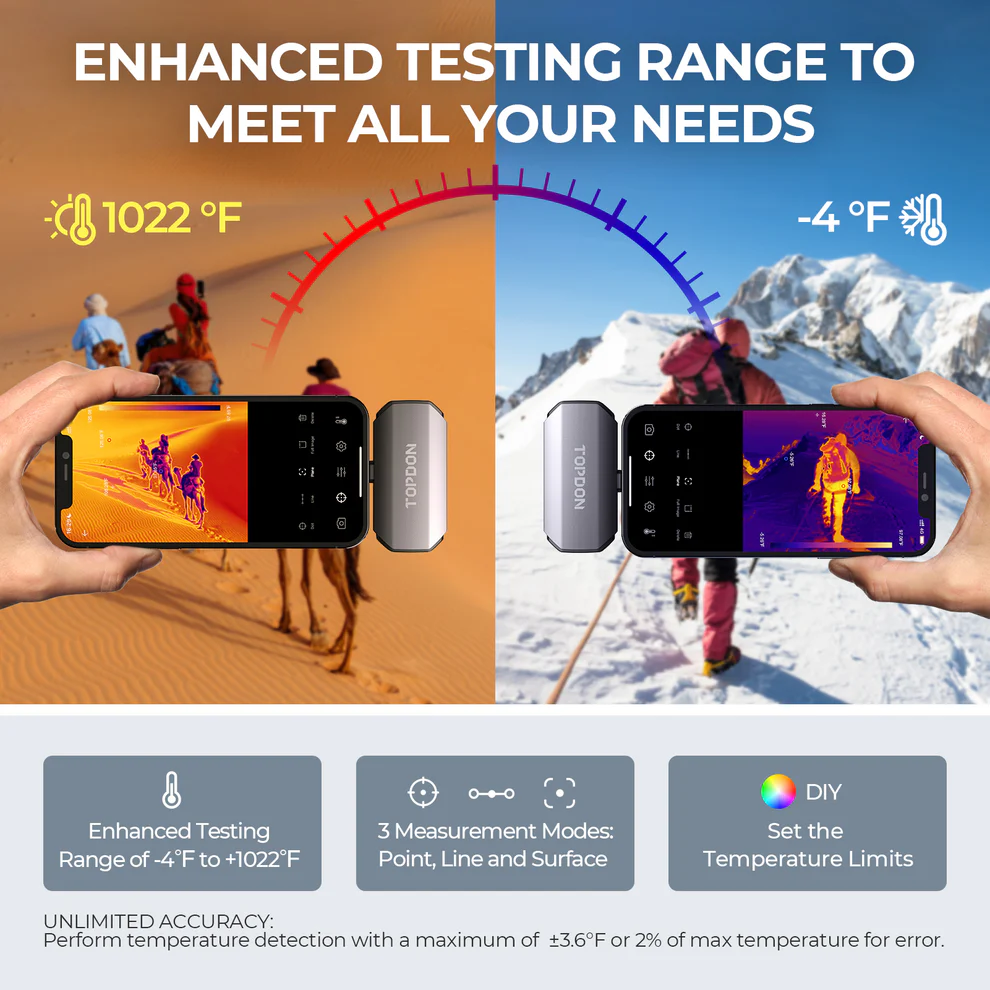

The TC002 boasts a wide temperature range of -4°F to 1022°F (-20°C to 550°C), making it suitable for temperature readings on a variety of objects. It also boasts serious accuracy, with a maximum deviation of ±3.6°F (2°C) or 2% of the actual temperature, and a temperature measurement resolution of 0.1°F (0.1°C).

EXTENSIVE APPLICATIONS

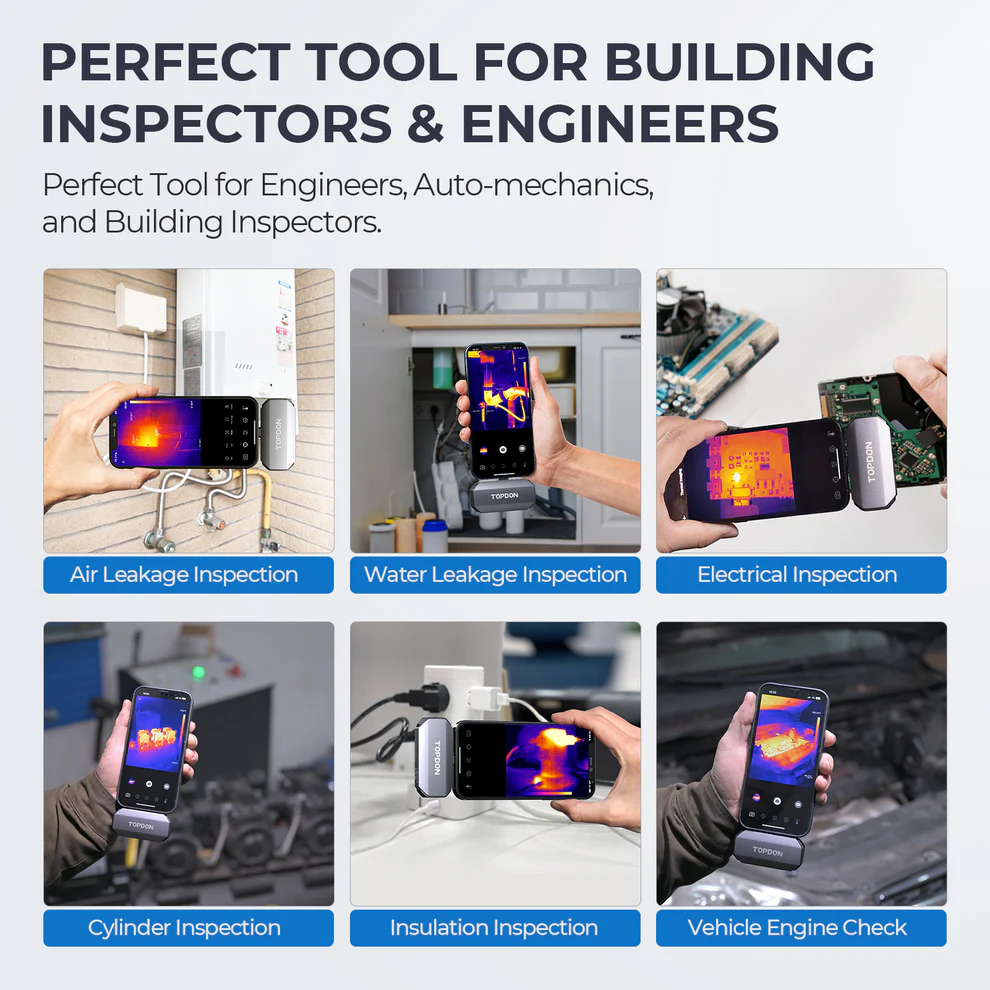

The TC002's precise temperature measurement capabilities make it an ideal tool for a variety of industries and applications. It allows for safe temperature readings from a distance, making it suitable for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to monitor crops and livestock.

COMPLETELY CUSTOMIZABLE

Three Temperature-Reading Dimensions:
With the TC002 App TopInfrared, users can manually select from three different dimensions to check temperature: Point, Line (with highest and lowest readings), and Surface (with highest and lowest readings).

Multiple Color Palettes:
The TC002 offers 11 unique color palettes, allowing users to customize their temperature display to their preferred gradient colors.

Image Enhancement:
Users can adjust the sharpness and contrast of the thermal image to achieve a customized view.

ADJUSTABLE TEMPERATURE RANGE

Featuring a DIY temperature range feature, the TC002 allows users to set maximum and minimum temperature limits. If the object temperature exceeds these limits, the camera will display corresponding color images, making it easier for users to understand and visualize the temperature of the target area.

INTUITIVE AND GRAPHICAL WAVEFORM

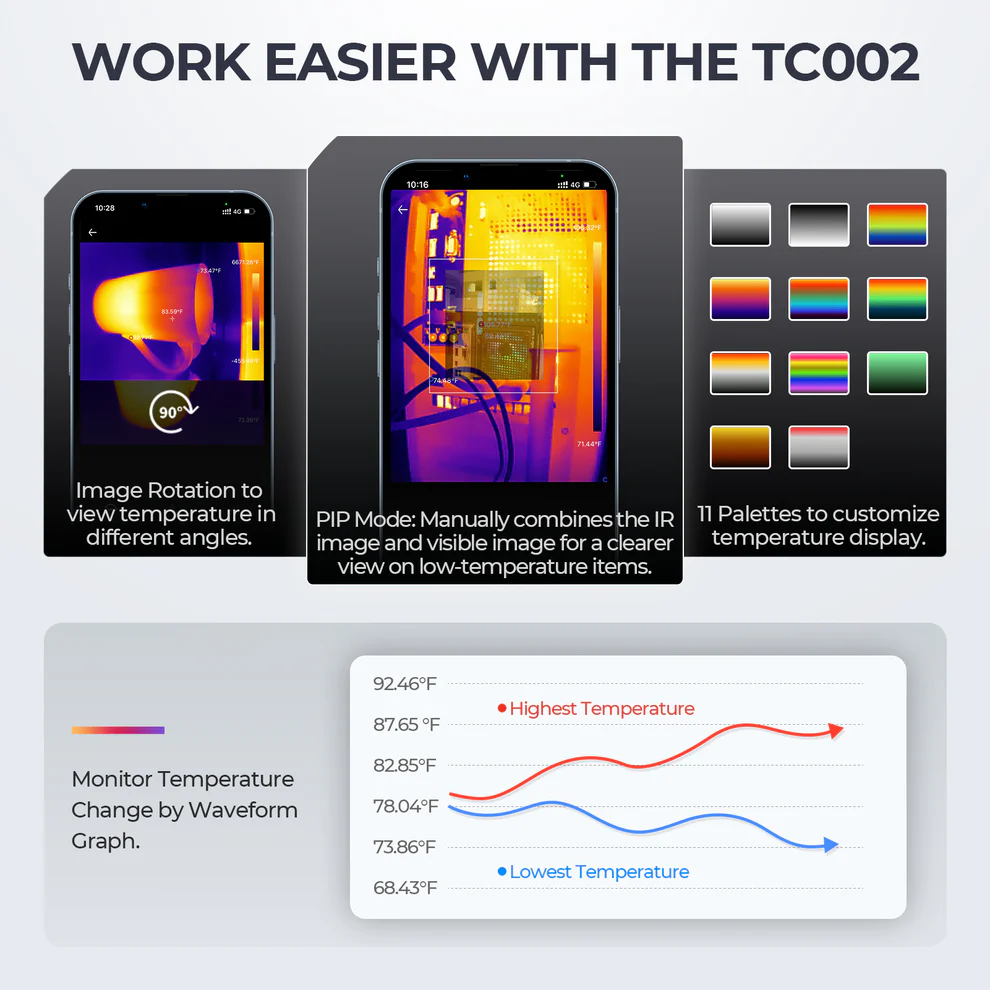

The TC002 thermal camera can take continuous temperature readings and store the data in its accompanying app TopInfrared. This data can then be used to calculate the high, low, and average temperature of objects within its field of view over a certain period of time, allowing users to visualize the data in the form of a waveform graph.
